Splitters

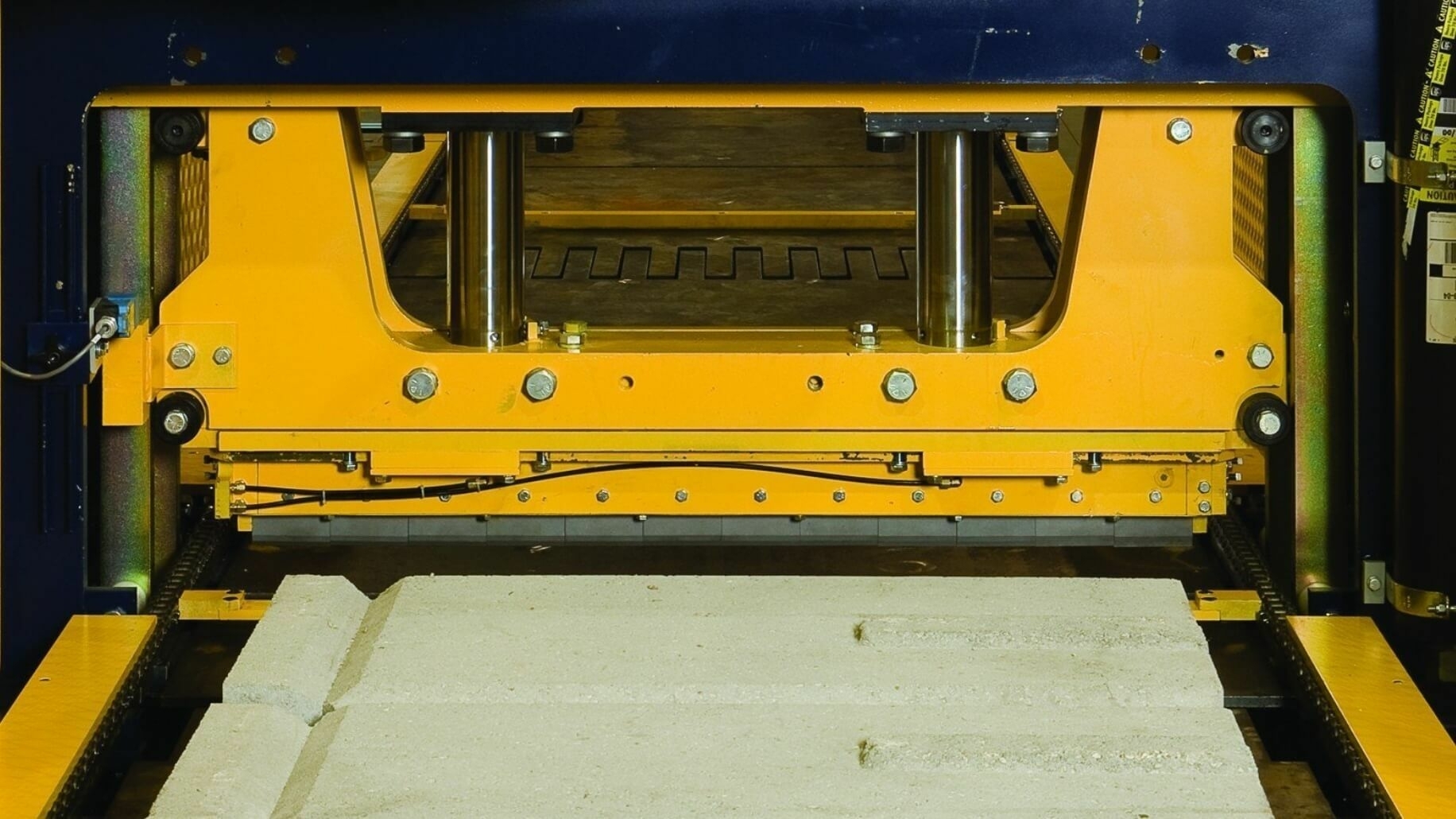

S140 Splitter

S140 Wide Splitter (Big Board)

The S140 handles the output of big board machines at up to 12 splits per minute* delivering single or multiple splits. The S140 splits units up to 52” (1320mm) wide and 1-5/8" - 12” (41mm - 305mm) tall. When products require a second split side the conveyor reverses, the product is rotated 90 degrees and fed back through the splitter.

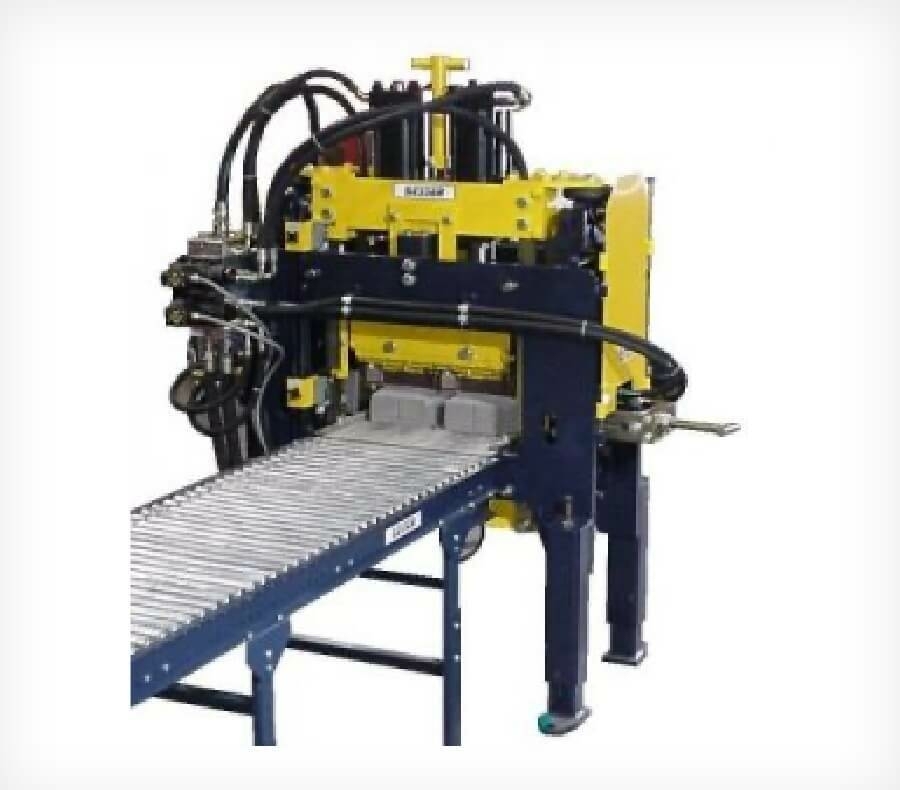

S63 Splitter

S63EZ Splitter

The S63 EZ automatic splitter is fast, simple to operate, clean-up and maintain. It can split products ranging from 1-5/8" - 12” (41mm - 305mm) tall and up to 24” (610mm) wide. A V-wheel package allows the splitter and  conveyor to easily be moved in-and-out of line.

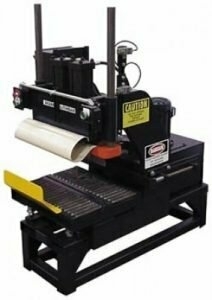

Quiksplit II

Quicksplit ll Splitter

The Quicksplit ll splits architectural units, retaining wall units, and specialty units. Manually operated, it can split units from 1-5/8" – 9” (41mm - 229mm) in height up to 24” (610mm) wide.

S62 Splitter

S62 Splitter

The S62 splits architectural units, retaining wall units, and specialty units. It can split units from 1-5/8" – 9” (41mm - 229mm) in height up to 24” (610mm) wide.

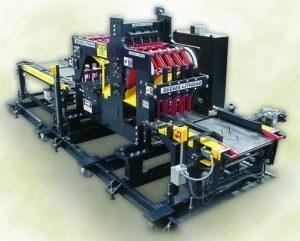

V200 Nova Brik Splitter

V-200 Splitter

The V-200 splitter splits Novabrik™ in-line automatically and reorients the units for cubing. The V-200 simultaneously splits four brick per cycle and handles four units in four rows to keep up with the concrete products machine.

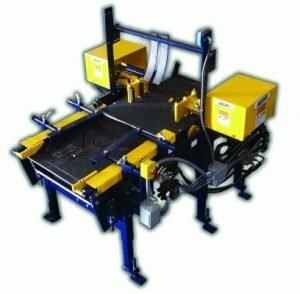

Block Turnover (BTO)

Splitter/Turnover

The S63 splitter can come integrated with a block turnover. This is called a splitter/turnover (SPT) combo. The SPT can operate sequentially or independently depending upon production needs. In a single cycle, the SPT can split, turn, or split and turn units. Controls can selectively turn only the base course of a cube if needed or they can count and turn partial pallet loads for handling odd block and mixed mold boxes. A V-wheel package is available for moving the splitter and turnover in-and-out of line.
