Ancillary Equipment

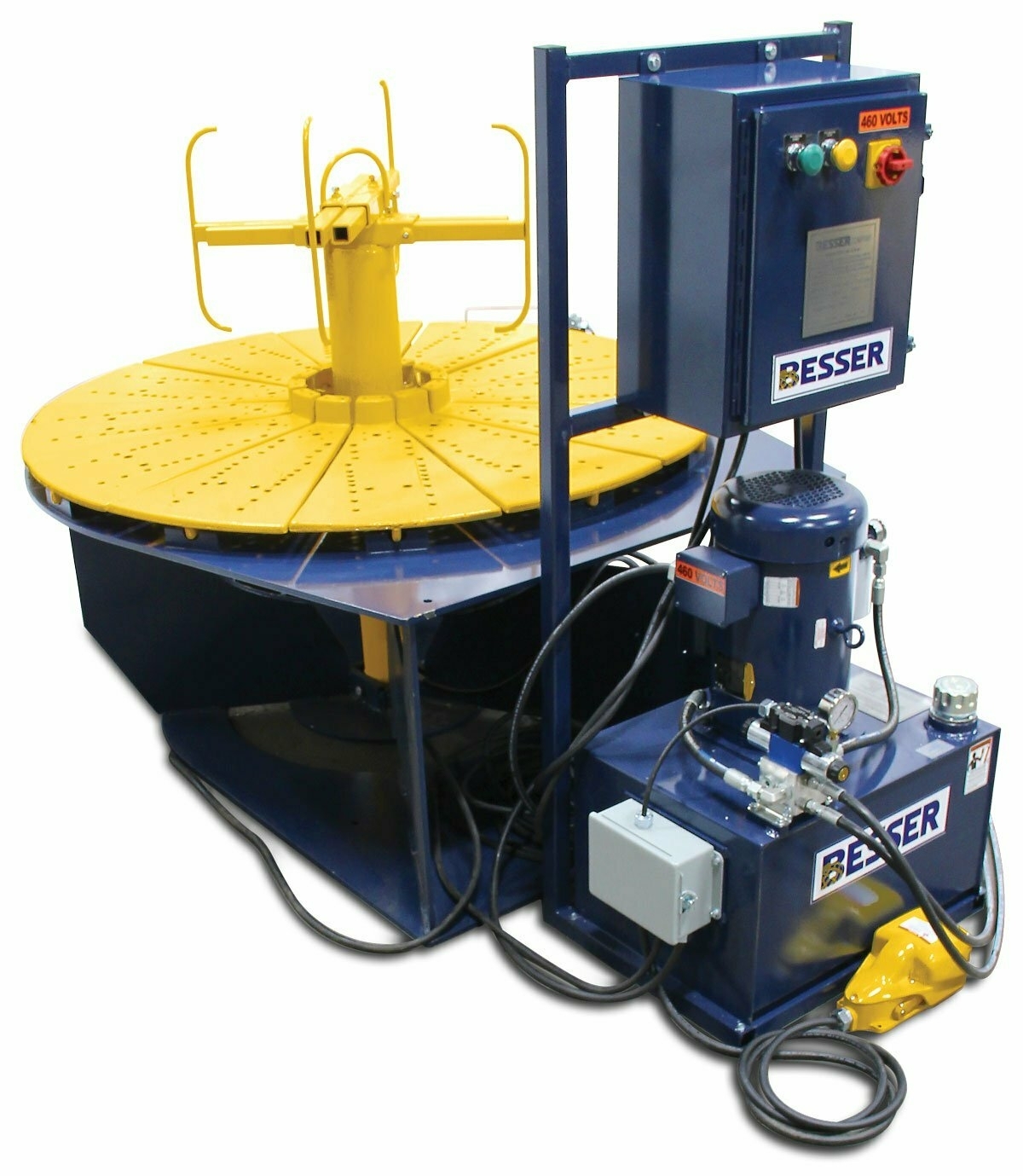

The Besser Cage Expander is versatile, easy to set-up, and operate. It creates round cages without flat spots, and can be used in both horizontal or vertical installation.

Three sizes are available: 8–36″ (200–900mm); 12 –48″ (300–1200mm); 42–72″ (1050–1800mm)

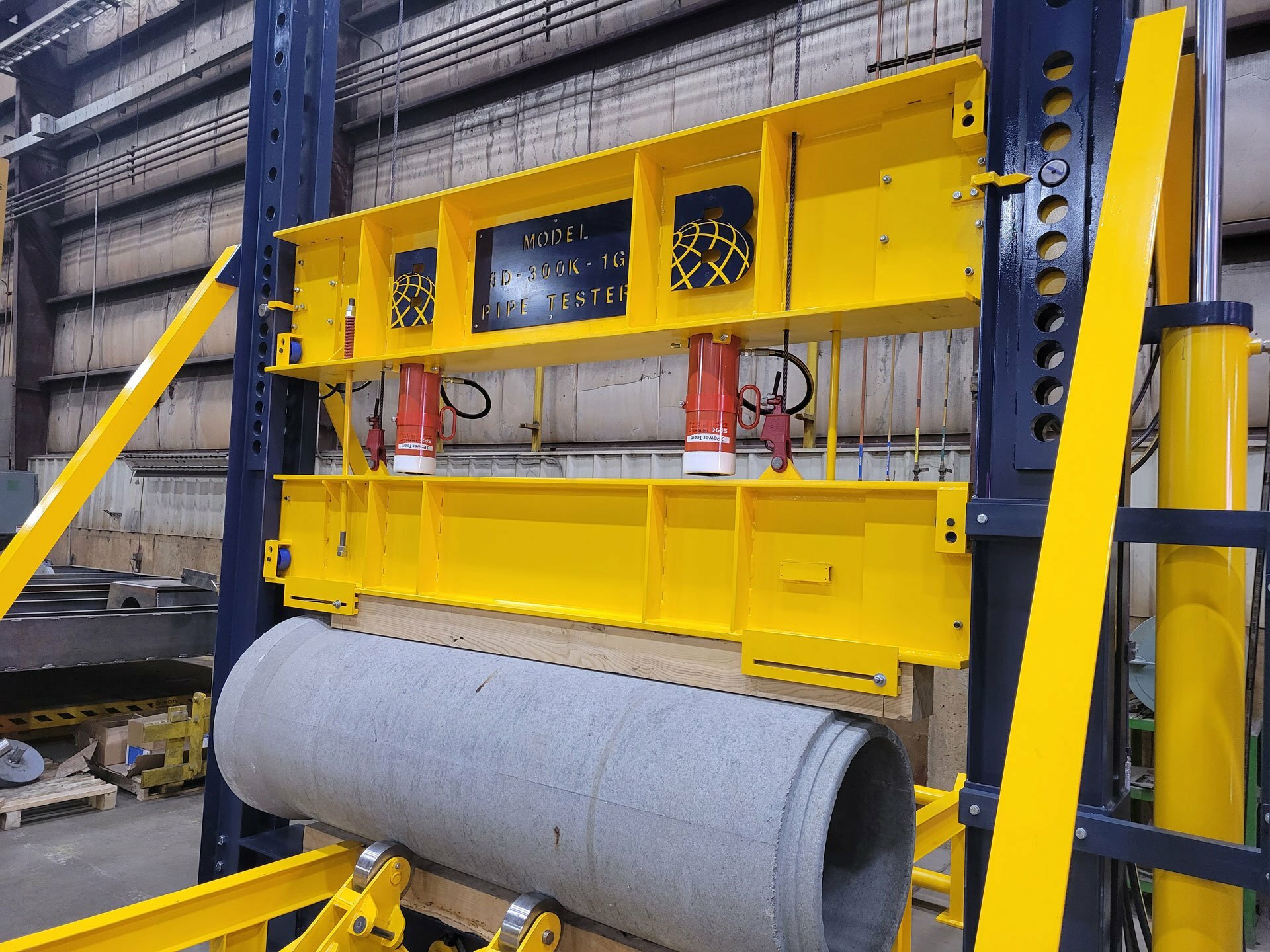

In plant D-Load Concrete Pipe Testers improve your production facility’s quality control. This tester allows onsite testing of round, arch, and elliptical pipe, that is convenient, fast, and accurate. Simple operation is assured with hydraulic lift and automatic pin positioning.

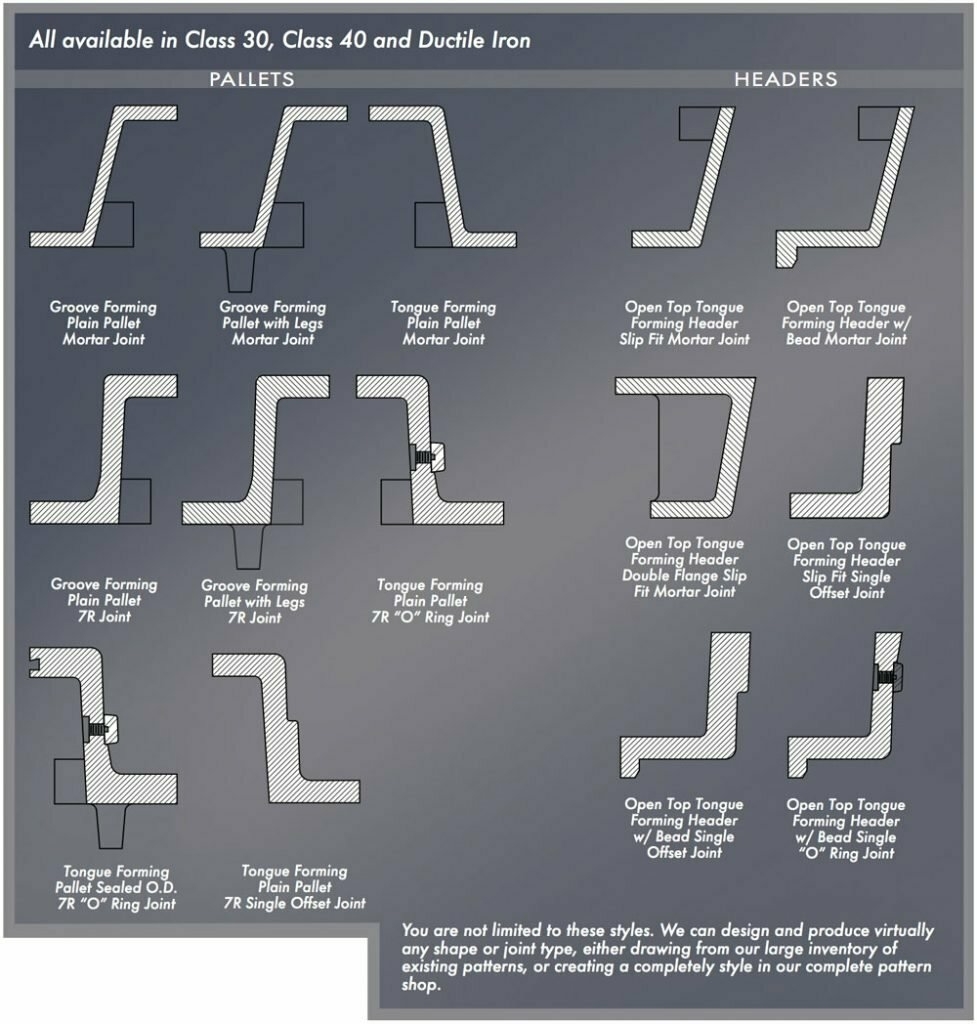

Round, arch and elliptical pallets and headers for wet cast, dry cast, and machine-made pipe are available in diameters from ID 12 – 144˝ (300 – 3600mm). Joint designs include O-ring, double O-ring, single and double offset, mortar, and steel end ring; additional designs are available.
