April 30, 2015

Continued Design and Development - Upgraded Patternmaker Infeed Clamp

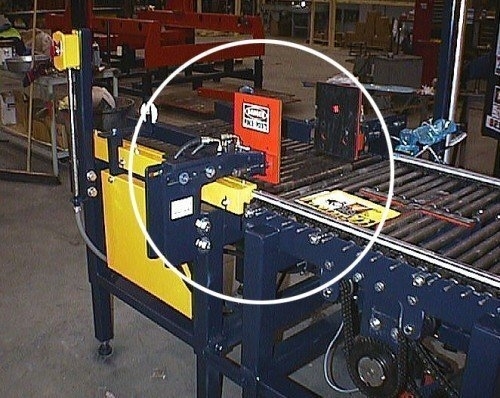

Original Clamps 500 398 90

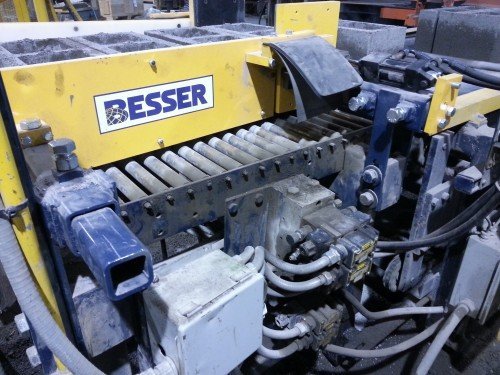

At Besser, we strive to provide continued support for all of our concrete products equipment. Feedback from customers allows us to ensure our machines are working properly and efficiently in the field. In response to a number of customers dissatisfied with the clamp design on their older power feed conveyors we developed a retrofit kit to replace the older clamp design with an improved clamp assembly which are now standard on all newer power feed conveyors. The new cuber clamps feature a new robust design that includes infeed guides and replaceable wear liners. They are also designed to fit on the existing mounting blocks located on most power feed models (weld on mounting blocks are included in the kit and can be used as needed). The hydraulic cylinders included with the retrofit assembly are controlled using the feed conveyor’s existing hydraulic valves and hoses. If you currently have a cuber power feed conveyor with the old style clamps please contact your Besser sales representative or Brad Meyer +1.989.354.4111 ext. 7833 or bmeyer@besser.com. [caption id="attachment_4507" align="alignnone" width="500"] The image above illustrates the older style clamps that have since been redesigned.[/caption] [caption id="attachment_4510" align="alignnone" width="500"] The image above illustrates the new, upgraded clamp system. When compared to the image of the old clamps, it is easy to see the robustness of the new retrofit clamps.[/caption]
