The Besser-Matic loads green concrete products, indexes a new rack, unloads and depallets cured concrete products and returns empty pallets to the pallet magazine.

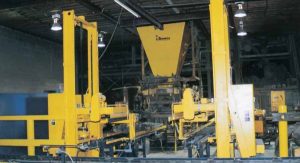

E-Model Besser-Matic
This loader / unloader can handle production from a three-at-a-time concrete products machine at speeds up to 8 cycles per minute.
Optimum Performance
Plant production is optimized through the predictable, consistent operation of the E-Model Besser-Matic. Time tested, the E-Model Besser-Matic is a cost effective rack loader/unloader. A limited number of wear parts maximizes productivity and the ergonomic design makes preventative maintenance simple.
The E-Model Besser-Matic is compatible with an automatic LSC-40 rack transporter system by using a conversion package.
Designed for Safety
The E-Model Besser-Matic is designed for safety. Guards on the backside of the E-Model loader/ unloader towers offer protection from potential hazards.
Pictorial warning decals are placed on the equipment as reminders of some of the potential hazards and to urge personnel to follow lockout procedures prior to servicing. Decals with suggested lockout procedures and electrical panel lockout hardware are provided to help you achieve your safety goals.
Special features were added to make the E-Model Besser-Matic a safe piece of equipment. However, the ultimate responsibility for ensuring that ALL appropriate safety measures including lockout procedures, are consistently followed lies with the E-Model owner and operators.
Features
Conveyor
Front delivery and unloading conveyors are made of channel construction for strength. A one-inch pitch chain is used for durability. The end section of the front delivery conveyor in the loader features two shock absorbers which provide a soft pallet stop.
Harmonic Depalleter
The harmonic depalleter is available in three configurations to remove concrete products from the pallet: 1) pallet straight through, 2) right angle or 3) block straight through. The harmonic depalleter begins the cycle slowly, gradually increases speed and slows down at the end of a forward motion, as the product is separated from the pallet. Option: an electric, single push harmonic depalleter is available.
